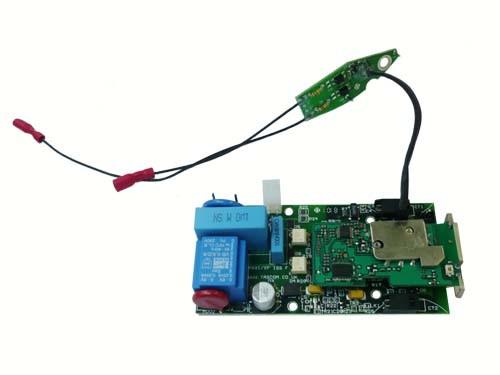

Flex Receiver Board , Decoder Board Modulation System With Current Limit

Product Categories

Shenzhen Wex Technology Co. Ltd

Contact Now

Place of Origin : CHINA

Brand Name : WEX

Certification : CE,FCC,ROHS

Price : Negotiable

Contact Now

W2015 + W2016 (Flex Receiver Board + Decoder Board) SPECIFICATIONS

Version 1.0

Frequency Range	928-932MHz Bands
Channel Spacing	25KHz
Signal Format	FLEX
Data Transmission Rate	1600bps or 3200bps or 6400bps
Modulation System	Carrier frequency shift keying (NRZ)
Frequency Deviation	±4.8KHZ
Receiving Sensitivity	1600bps 8uV/m, 3200bps 10uV/m, 6400bps 12uV/m
Selectivity	50 Db
Spurious Rejection	More than 50 dB
Image Rejection	40dB (928-932MHz)
Frequency Stability	±3PPM (928-932MHz)
