Amcom Messenger Pocsag Paging Transmitter Telemetry Relay Module

Product Categories
Shenzhen Wex Technology Co. Ltd
Contact Now

Amcom Messenger Pocsag Paging Transmitter Telemetry Relay Module

Brand Name : WEX

Certification : CE,FCC,ROHS

Place of Origin : CHINA

Price : Negotiable

Contact Now

Versatile Paging Transmitter
The Fusion™ INTELPage IP™ is a state-of-the-art IP paging transmitter that meets the specific needs of the modern paging industry. INTELPage IP is fully compatible for operation, through IP/Ethernet connectivity, with the Fusion Event Management Module™ (EMM) and Amcom Messenger™. In combination with these solutions, the INTELPage IP transmitter ensures messages are dispatched in an accurate and timely manner to communication devices such as pagers and LED signs.

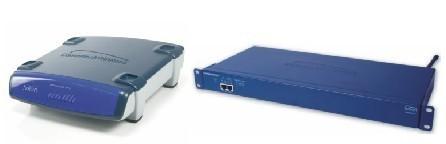

The INTELPage IP is available in a 19” rack-mount design or stackable plastic enclosure (5 Watt only). The INTELPage IP comes in 5W, 25W, 50W and 100W options to support various coverage requirements and is available in all standard UHF and VHF frequencies.
Event Management module(EMM)

Telemetry Relay module(TRM)
LED Signs
Amcom Messenger
Fusion Series INTEL Page IP
Pagers
Technical Specifications
Equipment Type Non Return to Zero IP and Serial Based POCSAG Encoder
Power Supply 110-240VAC 50/60Hz (Autosensing)
Frequency Range
VHF – 148-174 MHz Synthesized
UHF – 440-470 MHz Synthesized
External Connectors
Serial: RS232C, 300-57600 Baud, RJ45F
Ethernet: IEEE 802.3, 10 Base-T, RJ45
Status LEDs
Power, Busy, PTT, Data,
RS232 Tx, RS232 Rx, IP Activity, IP Link
Programming Via Terminal or Web Browser
Pager Database 1000 Pager IDs
Supported Input Protocols
TAP (PET, IXO) / COMP1, 2 / SCOPE /
TNPP / Terminal / Tekk (Waveware)
Supported Output Protocols POCSAG 512, 1200 or 2400bps
Channel Spacing 12.5 kHz (Narrow) & 25 kHz (Wide)
Dimensions
5W Plastic – 255 x 230 x 70 mm (10 x 8 x 2.7 inches)
5W Rack – Standard 19” Rack Case
439 x 205 x 44 mm (17.3 x 8.1 x 1.7 inches) Minus Rack Ears
25/50/100W Rack – Standard 2RU 19” Rack Case 439 x 430 x 88 mm (19 x 16.5 x 3.4 inches) Minus Rack Ears
Weight
5W Plastic – 0.7kg / 1.5lb Net
5W Rack – 2.7kg / 5.9lb Net
25W Rack – 7.0kg / 15.4 lb Net
50W Rack – 9.5kg / 21.0 lb Net
100W Rack – 9.5kg / 21.0 lb Net
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
(20-90% RH Non-Condensing)
Storage Temperature -10 °C - 60 °C (14 °F - 140 °F) (10-95% RH Non-condensing)
Approvals FCC, CE, C-tick, ROHS, IC, EN60950, IDA, CB (depending on model)
